Introducing the excellent products of Hansung Co., Ltd., a leading company in the field of steam sterilizers.
High Pressure Steam Sterilizer (B Class)

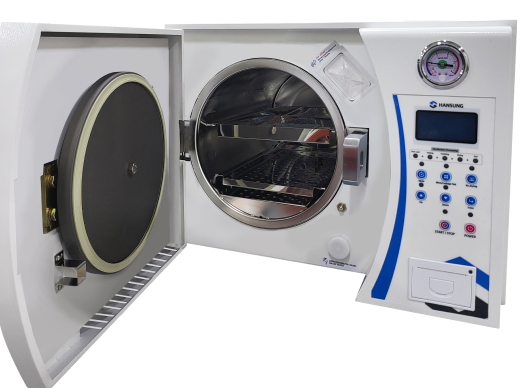

APOLLON 2322VBalanced Design, Sterilization Quality You Can Trust.
APOLLON 2322V is a compact steam sterilizer designed to rapidly sterilize a wide range of clinical instruments and medical consumables, preventing infection and improving the efficiency of clinical workflow.
With fast sterilization cycles, high throughput, and an installation structure suited to confined spaces, it responds effectively to the frequent sterilization demands of medical institutions.
With built-in smart protection features and a diagnostic system, it is a practical sterilization solution that balances speed, safety, and space efficiency.
22-liter chamber
for space-limited
facilities
for space-limited
facilities
Fast cycles minimize
waiting time
waiting time
Compact design fits
small treatment rooms
and clinics
small treatment rooms
and clinics
Durable build keeps
performance stable
through repeat cycles
performance stable
through repeat cycles
Intuitive controls
with smart protection
for safe operation
with smart protection
for safe operation
Horizontal benchtop Class B steam sterilizer
Cylindrical chamber in stainless steel 304/316L
Cylindrical chamber in stainless steel 304/316L
Supports Bowie-Dick and vacuum test programs
Automatic temperature control
Automatic temperature control
Sterilization data and cycle progress shown on LCD
Built-in thermal transfer printer
Built-in thermal transfer printer
Distilled water level indicator for the reservoir
User-adjustable water usage for each sterilization mode
User-adjustable water usage for each sterilization mode
Door safety lock prevents opening during the cycle
Cycle can be stopped at any time; buzzer alert on completion
Cycle can be stopped at any time; buzzer alert on completion
Over-temperature/over-pressure protection with automatic power-off after completion
Heat- and pressure-resistant high-density silicone gasket
Heat- and pressure-resistant high-density silicone gasket
Analog pressure gauge for checking chamber pressure
Earth leakage breaker cuts main power on overcurrent or leakage
Earth leakage breaker cuts main power on overcurrent or leakage
01Powerful Sterilization Performance
02Verified Quality Certification
03Intuitive Control System
04Economical and Efficient Maintenance
05Reinforced Safety System
06Reliability Proven in Global Markets
| Dimensions | 550(W) × 720(L) × 350(H)mm | Chamber Volume | 22 LITER |
| Chamber Size | Ø272 × 530mm | Chamber Type & Material | Cylindrical, SUS 304/316L |
| Water Tank Capacity | 4.0L | Power Supply | AC 220V~230V, 50/60Hz |
| Power Consumption | 2.4kW | Steril. Temperature | 121℃~134℃ |
| Steril. Pressure | 1.1bar~2.1bar | Vacuum Pump | Oil-free |
| Max. Vacuum | 690mmHg | Noise Level | ≤ 75dB |
| Steril. Time | 1~99 min / User adjustable | Drying Time | 1~99 min / User adjustable |
| Steril. Vacuum | 550mmHg ± 1mmHg/min | Control System | Microprocessor |
| Drying Method | Vacuum, internal & external heaters | Weight | 70kg |
| Safety Devices | Pressure safety valve, Earth leakage breaker, Over-heat/over-temperature protection, Door safety lock | ||
| Optional Accessories | Thermal transfer printer, Bluetooth transmitter, SD storage device, Exhaust system, Door safety lock | ||
